Description

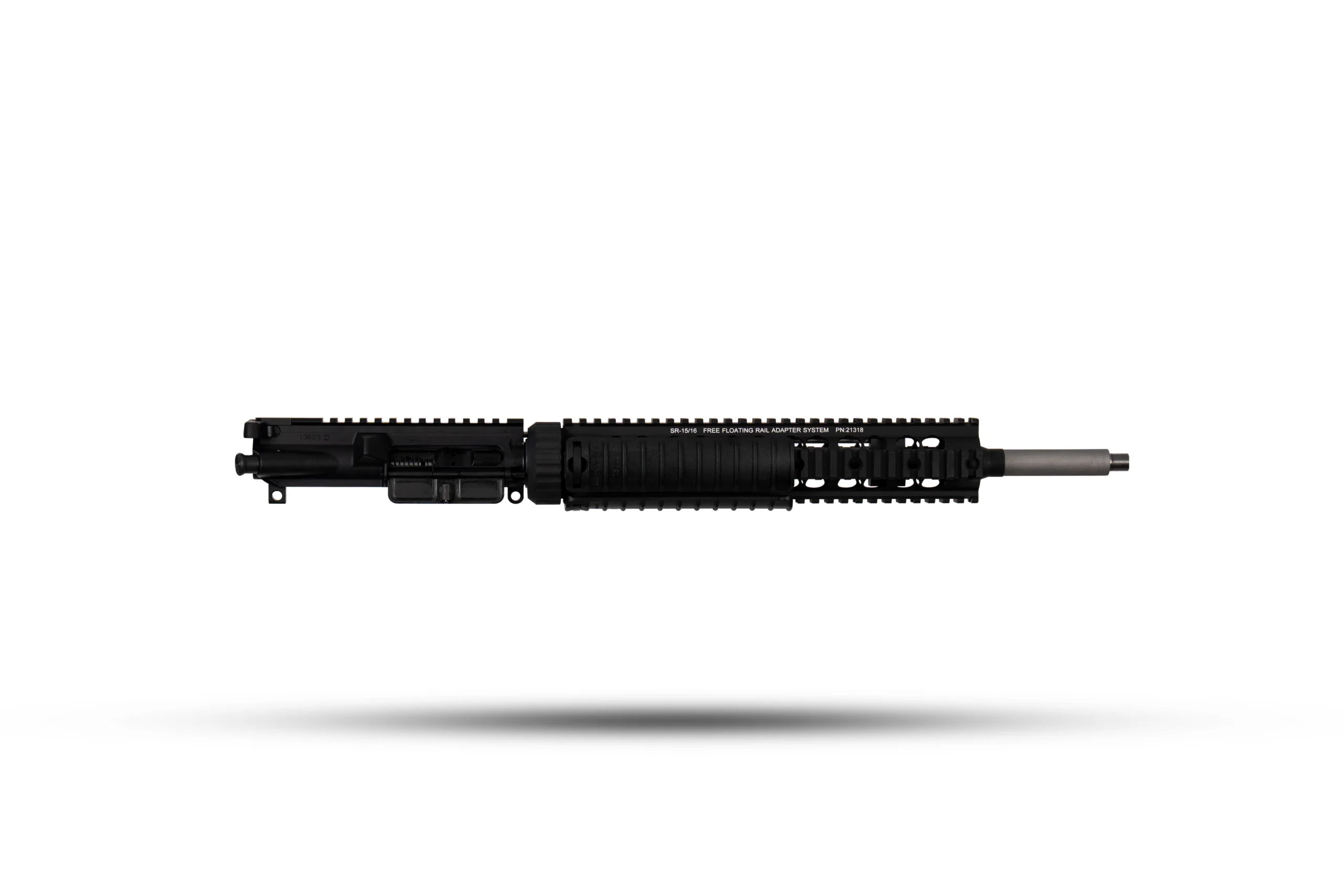

COLT M4 UPPER
16.5″ AE RECCE BARREL SS 416R 1/7 TWIST BARREL (FLUSH MOUNT WITH AEM5)
MK12 GAS BLOCK
FITTED GAS TUBE
OPS INC COLLAR
KNIGHTS FF LONG MK12 RAIL.

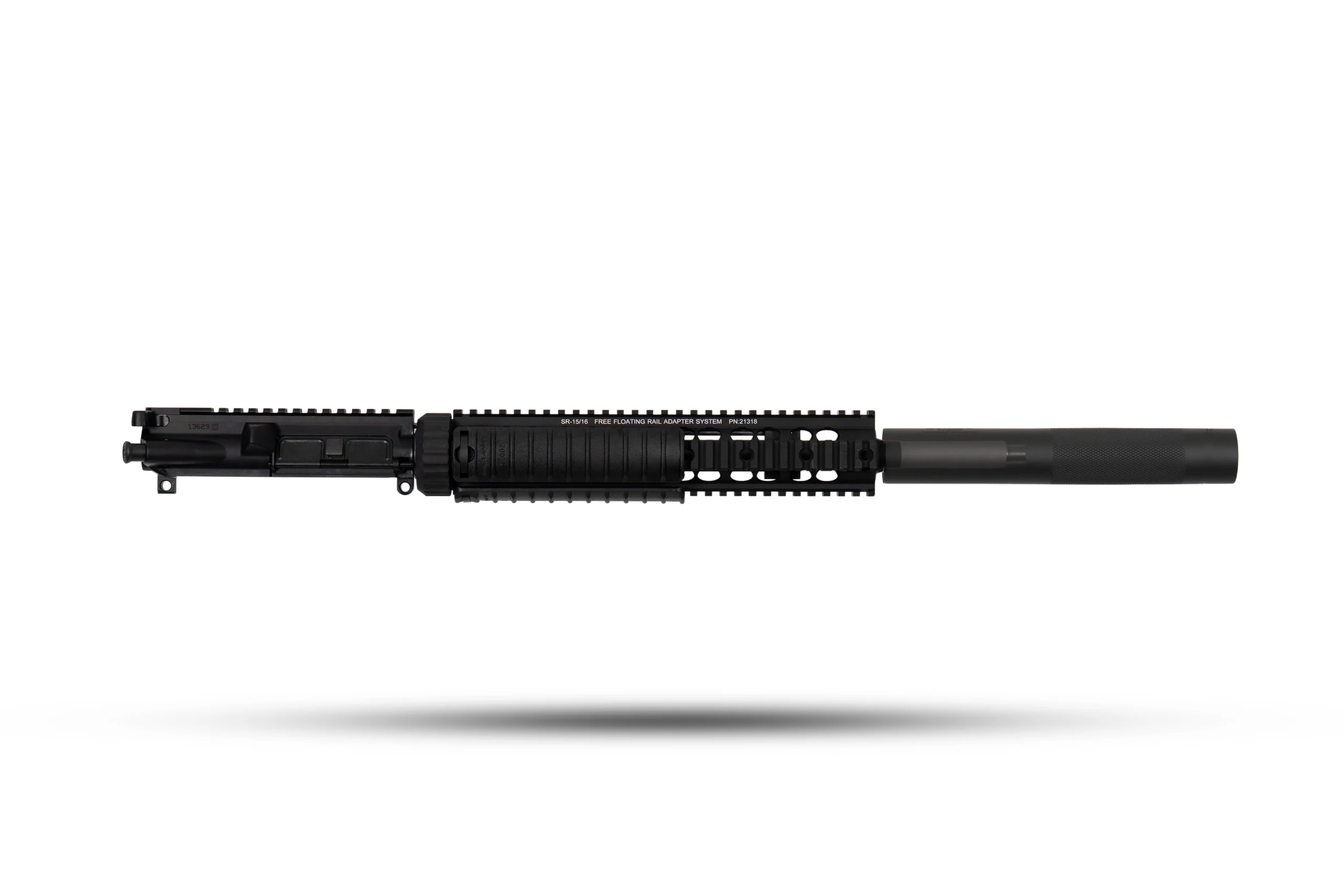

AE M4 RECCE SUPPRESSOR.
(NO BCG OR CH INCLUDED)
The AE Recce Barrel makes improvements to the original design used on the NSWDG Recce Rifles. This barrel has a mid-length gas system and a reduced gas port for dedicated suppressed use with the M4-Recce suppressor. This will provide a less gassy and softer shooting experience when compared to the original. In addition, the barrel takes lessons from the Mk12 system and gives the M4 recce collar a step to sit against instead of relying solely on a set screw to hold the collar in place. This is a more repeatable and robust system when compared to the original method.
The kit includes an AE Low-Profile Gasblock that is designed to be friction fit with AE barrels. This to provide an enhanced seal around the gas-port leading to more reliable gassing. **The gasblock might need to be heated up for proper fitment. Installation might lead to some blemishes on the gas journal**
In addition, the kit includes an AE mid-length gastube which has critical dimensions verified to within a .001″ window.
Finally, the kit ships with the M4 recce collar which is used to mount the M4-Recce suppressor.
- Length: 16.5″
-
Caliber .223 Wylde
- Material: 416R Stainless
-
Twist Rate: 1:7
-
Gas system: Mid-Length
-
Gas block: AE Low-Profile
-
Muzzle threads: ½”‑28
-
Finish: Bead‑blasted
** The AE Recce Barrel was tuned to work with a in-spec BCG, and Vltor A5 buffer system with a Sprinco green spring and a H2 buffer**
At Badlands, rifles are not just parts slapped together; every upper is assembled with precision and intent. Tolerance stacking is a critical factor in building AR-15s, and not all components are created equal. Even highly respected manufacturers work within specified tolerances, which means not every part will play perfectly with every other part.
Because we do not manufacture the components ourselves, meticulous gauging and part selection are essential. We exclusively use Colt upper receivers because they have proven to be the most consistent in our experience, and to date we have not encountered one that required face lapping to meet our standards. The barrel is headspaced using a Colt bolt, and while many other bolts will function, a Colt BCG is strongly recommended, as they arrive in spec far more consistently than most alternatives.
During the build process, several upper receivers may be test-fitted before finding the one that mates perfectly with the M4 feed ramps on the barrel extension. This ensures optimal alignment for reliable feeding and long-term performance. The feed ramp extension is polished through a five-step process to a mirror finish, aiding consistency and helping the rifle maintain repeatable accuracy.
The barrel is also bedded to the receiver, a refinement that, in internal testing, reduced standard deviation by approximately 5 SD, tightening overall consistency. This upper features a Allen Eng. stainless steel barrel, dimpled for a set screw and turned specifically with the MK12 gas block in mind.
Whether this upper becomes a range toy or a duty rifle, you can be confident that the assembly work has been done to a high standard. When investing in an upper of this caliber, a proper break-in—or “seasoning” the barrel—is highly recommended. While this process is not claimed to increase raw accuracy, it can make cleaning significantly easier and help maintain consistent performance over time.
Our suggested break-in procedure is as follows:
-
Fire 1 round, then brush the bore and run patches until they come out clean and free of carbon.
-
Repeat that single-shot-and-clean cycle for a total of 5 rounds.
-
Next, fire 5 rounds in succession, then repeat the same thorough cleaning process.
-
Perform that 5-round string and cleaning cycle 4 times.
This results in a total of 25 rounds for break-in and sets your new upper up for easier maintenance and consistent performance.
